Transformadores de detecção de corrente

Número da peça do fabricante	Disponibilidade	Preço	Quantidade	Ficha técnica	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CST306-2T-B CURR SENSE XFMR 25A T/H Triad Magnetics	3,367	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	14 mH	1000VµS	-	100CT:1	1.55Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-3A-B CURR SENSE XFMR 25A T/H Triad Magnetics	2,046	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200:1	3.75Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST306-3T-B CURR SENSE XFMR 25A T/H Triad Magnetics	2,131	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200CT:1	3.75Ohm Max	-	Through Hole	0.690 L x 0.385 W (17.53mm x 9.78mm)	0.915 (23.24mm)
CST206-1A-B CURR SENSE XFMR 110A T/H Triad Magnetics	2,398	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	110 A	14 mH	2000VµS	-	100:1	580mOhm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CST206-1T-B CURR SENSE XFMR 110A T/H Triad Magnetics	3,459	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	110 A	14 mH	2000VµS	-	100:1	580mOhm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CST206-2A-B CURR SENSE XFMR 80A T/H Triad Magnetics	2,100	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	80 A	56 mH	4000VµS	-	200:1	3.5Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CST206-2T-B CURR SENSE XFMR 80A T/H Triad Magnetics	2,124	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	80 A	56 mH	4000VµS	-	200:1	3.5Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CST206-3A-B CURR SENSE XFMR 70A T/H Triad Magnetics	2,320	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	70 A	130 mH	6000VµS	-	300:1	12.4Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
CST206-3T-B CURR SENSE XFMR 70A T/H Triad Magnetics	3,229	-	RFQ	Ficha técnica	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	70 A	130 mH	6000VµS	-	300:1	12.4Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)

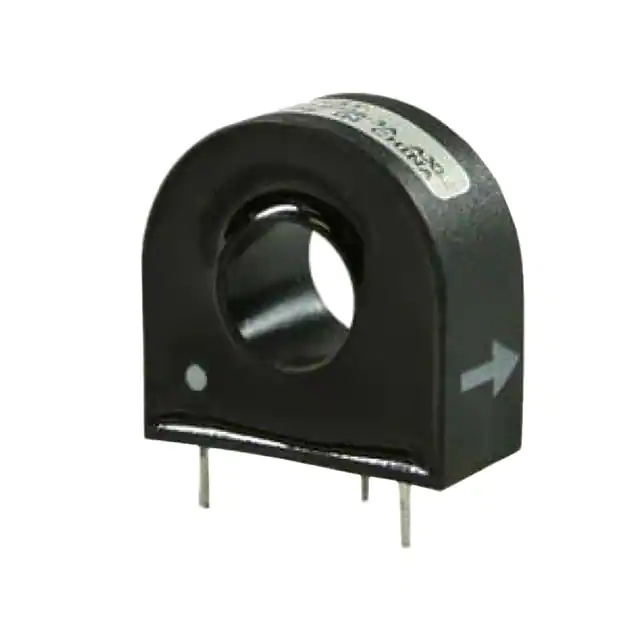

CST-1005-B CURR SENSE XFMR 5A T/H Triad Magnetics	2,094	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CST-1010-B CURR SENSE XFMR 10A T/H Triad Magnetics	2,299	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CST-1015-B CURR SENSE XFMR 15A T/H Triad Magnetics	3,212	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CST-1025-B CURR SENSE XFMR 25A T/H Triad Magnetics	2,658	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	25 A	-	-	-	1000:1	46Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)
CST-1030-B CURR SENSE XFMR 30A T/H Triad Magnetics	2,958	-	RFQ	Ficha técnica	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	30 A	-	-	-	1000:1	46Ohm	-	Through Hole	1.189 L x 0.563 W (30.20mm x 14.30mm)	1.189 (30.20mm)
CST25K CST25K - CURRENT SENSE TRANSFORM Triad Magnetics	2,342	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
CST25-1000 ENCAPSULATED PCB CURRENT SENSE X Triad Magnetics	2,340	-	RFQ	Ficha técnica	Bulk	CST	Active	50kHz ~ 500kHz	Invasive	25 A	1.9 H	-	1:1000	-	50Ohm	-	Through Hole	0.669 L x 0.591 W (17.00mm x 15.00mm)	0.472 (12.00mm)
