Núcleos de ferrite

Número da peça do fabricante	Disponibilidade	Preço	Quantidade	Ficha técnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

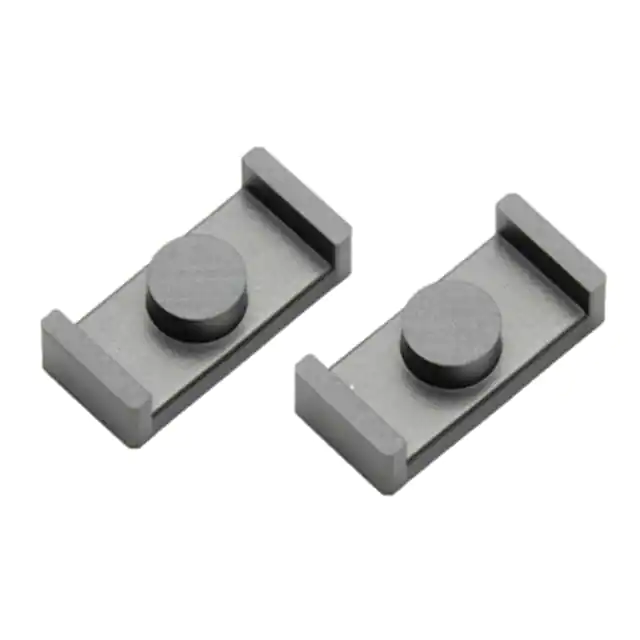

PC95ER22/5.5/15-Z FERRITE CORE ER 4.3UH 2PC SET TDK Corporation	3,310	-	RFQ	Ficha técnica	Tray	Planar	Active	ER	ER 22 x 5.5 x 15	PC95	-	4.3 µH	±25%	Ungapped	-	-	0.51	46.1	23.2	36.3	1070	Uncoated	0.108 (2.75mm)
B65807J0000R045 FERRITE CORE RM 3.5UH N45 2PCS EPCOS - TDK Electronics	2,084	-	RFQ	Ficha técnica	Box	RM6	Active	RM	RM 6	N45	-	3.5 µH	-20%, +30%	Ungapped	2180	3800	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65807N0200A048 FERRITE CORE EPCOS - TDK Electronics	3,939	-	RFQ	Ficha técnica	Box	RM6	Active	RM	RM 6	N48	-	-	-	Gapped	-	2300	0.78	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B65807N0500A048 FERRITE CORE EPCOS - TDK Electronics	3,444	-	RFQ	Ficha técnica	Box	RM6	Active	RM	RM 6	N48	-	-	-	Gapped	-	2300	0.78	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
E47/20/16-3C95-G200 E CORES Ferroxcube	3,402	-	RFQ	Ficha técnica	Bulk	-	Active	E	E 47 x 20 x 16	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
E47/20/16-3C92-G200 E CORES Ferroxcube	2,680	-	RFQ	Ficha técnica	Bulk	-	Active	E	E 47 x 20 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
E47/20/16-3C92-G500 E CORES Ferroxcube	3,194	-	RFQ	Ficha técnica	Bulk	-	Active	E	E 47 x 20 x 16	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
PQ26/25-3F46 PQ CORES 2PC SET Ferroxcube	3,930	-	RFQ	Ficha técnica	Bulk	-	Active	PQ	PQ 26 x 25	3F46	-	-	±25%	Ungapped	-	-	0.451	54.3	120	108	6530	Uncoated	0.972 (24.70mm)
B65807P0000R049 FERRITE CORE RM 2.2UH N49 2PCS EPCOS - TDK Electronics	2,068	-	RFQ	Ficha técnica	Box	RM6	Active	RM	RM 6 LP	N49	-	2.2 µH	-20%, +30%	Ungapped	1020	1500	0.58	21.8	37.5	31.2	820	Uncoated	0.177 (4.50mm)
P22/13-3C90 P CORES 2PC SET Ferroxcube	2,548	-	RFQ		Bulk	-	Active	P	P 22 x 13	3C90	0.866 (22.00mm)	4.2 µH	±25%	Ungapped	1660	-	0.497	31.5	63.4	50.9	2000	Uncoated	0.528 (13.40mm)
B64290L0710X035 FERRITE CORE EPCOS - TDK Electronics	2,536	-	RFQ	Ficha técnica	Box	TX20/10/15	Active	Toroid	-	T35	-	10.8 µH	±25%	Gapped	-	6000	-	-	-	-	-	Epoxy	-
E43/10/28-3C90 PLANAR E CORES Ferroxcube	3,037	-	RFQ		Bulk	-	Active	E	E 43 x 10 x 28	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
RM10/ILP-3F36 RM CORES 2PC SET Ferroxcube	3,577	-	RFQ	Ficha técnica	Bulk	-	Active	RM	RM 10	3F36	-	-	±25%	Ungapped	1060	-	0.34	33.9	99.1	89.1	3360	Uncoated	0.512 (13.00mm)
B65517T0100A048 FERRITE CORE P 100NH N48 2PCS EPCOS - TDK Electronics	2,772	-	RFQ	Ficha técnica	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	100 nH	±3%	Gapped	100	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65517T0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	3,129	-	RFQ	Ficha técnica	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	160 nH	±3%	Gapped	159	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
PLT43/28/4.1-3C97 PLANAR E CORES Ferroxcube	3,332	-	RFQ	Ficha técnica	Bulk	-	Active	PLT	PLT 43 x 28 x 4.1	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
PC47EPC27-Z FERRITE CORE EPC 1.54UH 2PC SET TDK Corporation	3,270	-	RFQ	Ficha técnica	Tray	EPC	Active	EPC	EPC 27	PC47	-	1.54 µH	±25%	Ungapped	-	-	1.43	69.4	48.6	-	3370	Uncoated	0.630 (16.00mm)
PQ32/15-3C96 PQ CORES 2PC SET Ferroxcube	2,356	-	RFQ	Ficha técnica	Bulk	-	Active	PQ	PQ 32 x 15	3C96	-	-	±25%	Ungapped	-	-	0.261	44.7	171	143	7640	Uncoated	0.591 (15.00mm)
ER41/7.6/32-3F36 PLANAR ER CORES Ferroxcube	3,967	-	RFQ	Ficha técnica	Bulk	-	Active	ER	ER 41 x 7.6 x 32	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.300 (7.60mm)
9478206002 78 PLANAR E CORE SET Fair-Rite Products Corp.	2,771	-	RFQ	Ficha técnica	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	28	62.1	221	215	13700	Uncoated	-
