Núcleos de ferrite

Número da peça do fabricante	Disponibilidade	Preço	Quantidade	Ficha técnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66421U0250K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	2,025	-	RFQ	Ficha técnica	Box	EFD25/13/9	Active	EFD	EFD 25 x 13 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
B65841A0000R087 FERRITE CORE EP 1.1UH N87 2PCS EPCOS - TDK Electronics	3,420	-	RFQ	Ficha técnica	Box	EP10	Active	EP	EP 10	N87	-	1.1 µH	-20%, +30%	Ungapped	1480	2200	1.7	19.2	11.3	8.5	217	Uncoated	0.205 (5.20mm)
EFD30/15/9-3F46 FERRITE CORE Ferroxcube	2,684	-	RFQ	Ficha técnica	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
TX25/15/10-3E10-M FERRITE CORES ROUND Ferroxcube	3,157	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 25 x 15 x 10	-	1.007 (25.95mm)	-	±30%	Ungapped	10000	-	1.23	60.2	48.9	-	2944	Epoxy	0.429 (10.90mm)
PC95EL15.5X5.8-Z FERRITE CORE EL 3.68UH 2PC SET TDK Corporation	3,736	-	RFQ	Ficha técnica	Tray	Planar	Active	EL	EI 15.5 x 5.8	PC95	-	3.68 µH	±25%	Ungapped	-	-	0.6	32.9	19.6	31.9	646	Uncoated	0.115 (2.92mm)
PC44PQ35/35Z-12 FERRITE CORE FOR SW PWR 2PC SET TDK Corporation	3,210	-	RFQ	Ficha técnica	Tray	-	Active	PQ	PQ 35 x 35	PC44	-	-	±25%	Ungapped	-	-	0.448	87.9	196	-	17300	Uncoated	1.368 (34.75mm)
B66229G0500X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,955	-	RFQ	Ficha técnica	Box	E32/16/9	Active	E	E 32 x 16 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
HF90T22X10X14 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,841	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	0.866 (22.00mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.394 (10.00mm)
B66358G0500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,344	-	RFQ	Ficha técnica	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)

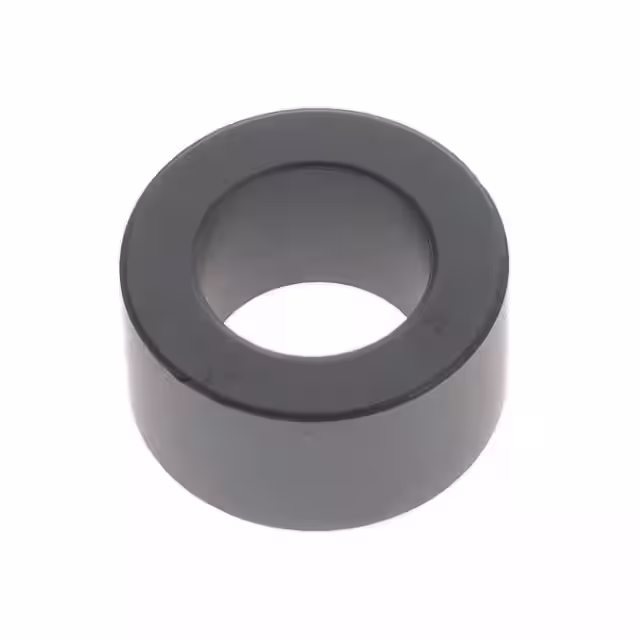

HF90T25X13X15 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,577	-	RFQ	Ficha técnica	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)
TX26/15/10-3C94 FERRITE CORES ROUND Ferroxcube	3,805	-	RFQ	Ficha técnica	Bulk	-	Active	Toroid	TX 26 x 15 x 10	3C94	1.061 (26.95mm)	-	±25%	Ungapped	2300	-	1.08	60.1	55.9	-	3360	Epoxy	0.429 (10.90mm)
EQ25/LP-3C95 FERRITE CORE Ferroxcube	2,359	-	RFQ	Ficha técnica	Bulk	-	Active	EQ	EQ 25 x LP	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.220 (5.60mm)
PC95EL18X7.3-Z FERRITE CORE EL 4.76UH 2PC SET TDK Corporation	2,067	-	RFQ	Ficha técnica	Tray	Planar	Active	EL	EL 18 x 7.3	PC95	-	4.76 µH	±25%	Ungapped	-	-	0.54	44.3	23.8	43	1050	Uncoated	0.144 (3.65mm)
PC95ELT18X7.3-Z FERRITE CORE ELT 4.76UH 1SET TDK Corporation	3,254	-	RFQ	Ficha técnica	Tray	Planar	Active	ELH, PLT	ELT 18 x 7.3	PC95	-	4.76 µH	±25%	Ungapped	-	-	0.54	44.3	23.8	43	1050	Uncoated	0.222 (5.65mm)
ETD44/22/15-3C94 FERRITE CORE Ferroxcube	2,073	-	RFQ	Ficha técnica	Bulk	-	Active	ETD	ETD 44 x 22 x 15	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.878 (22.30mm)
PC95ER25/5.5/18-Z FERRITE CORE ER 4.4UH 2PC SET TDK Corporation	2,601	-	RFQ	Ficha técnica	Tray	Planar	Active	ER	ER 25 x 5.5 x 18	PC95	-	4.4 µH	±25%	Ungapped	-	-	0.49	53.7	26.1	38.5	1400	Uncoated	0.108 (2.75mm)
PC95SP25X25X5 FERRITE CORE SP 1PCS TDK Corporation	2,785	-	RFQ	Ficha técnica	Tray	SP	Active	SP	SP 25 x 5 x 5	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)
B66285K0000X197 FERRITE CORE I N97 EPCOS - TDK Electronics	3,989	-	RFQ	Ficha técnica	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
PC47EER28L-Z FERRITE CORE EER 2.52UH 2PC SET TDK Corporation	2,122	-	RFQ	Ficha técnica	Tray	E	Active	E	EER 28	PC47	-	2.52 µH	±25%	Ungapped	-	-	0.93	75.5	81.4	-	6150	Uncoated	0.665 (16.90mm)

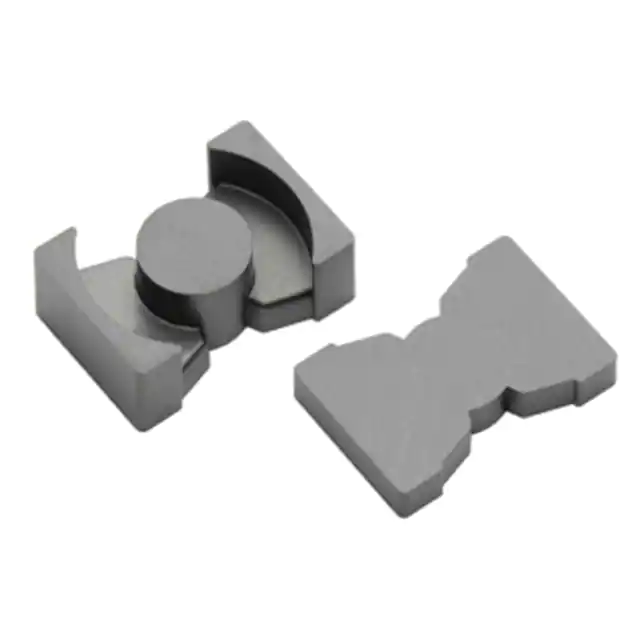

PC95PQI16/7.8Z-12 FERRITE CORE PQI 4.91UH 1SET TDK Corporation	2,596	-	RFQ	Ficha técnica	Tray	Planar	Active	HPQ, PQD	PQI 16 x 7.8	PC95	-	4.91 µH	±25%	Ungapped	-	-	0.47	41.8	19.5	37.6	815	Uncoated	0.213 (5.40mm)
