Iluminação de LED - COBs, motores, módulos, tiras
| Foto: | Número da peça do fabricante | Disponibilidade | Preço | Quantidade | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-50G4000-F-Z4LED ARRAY 4000LM COOL WHITE Bridgelux |
3,878 | - |
RFQ |
Tray | Vero® 18 Array | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 3419lm (Typ) | 1.05A | 85°C | 28.6V | 114 lm/W | 2.1A | 90 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | |
|

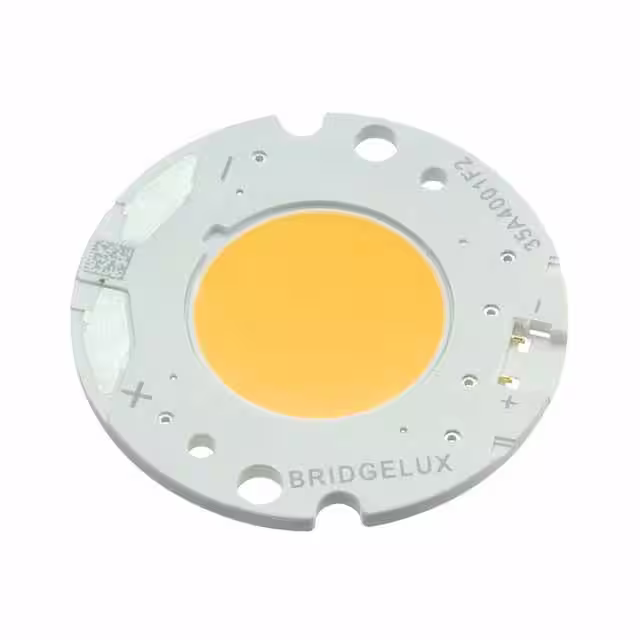

BXRC-35A4001-F-23LED ARRAY 3500K WHT 4000LM COB Bridgelux |
2,273 | - |
RFQ |
Ficha técnica |
Tray | Décor Series™ Class A Vero® 18 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 2868lm (Typ) | 1.05A | 70°C | 28.6V | 96 lm/W | 2.1A | 93 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRH-30G1000-C-231000 LM WARM WHITE LED ARRAY Bridgelux |
2,470 | - |
RFQ |
Ficha técnica |
Tube | H6 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1153lm (Typ) | 750mA | 25°C | 18.3V | 84 lm/W | 1.05A | 90 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia |
|
|
BXRH-35A1001-C-231000 LM CLASS A WARM WHITE LED A Bridgelux |
3,120 | - |
RFQ |
Ficha técnica |
Tube | H6 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1153lm (Typ) | 750mA | 25°C | 18.3V | 84 lm/W | 1.05A | 93 (Typ) | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia |
|
|
BXRH-40E1000-C-231000 LM NEUTRAL WHITE LED ARRAY Bridgelux |
2,189 | - |
RFQ |
Ficha técnica |
Tube | H6 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1455lm (Typ) | 750mA | 25°C | 18.3V | 106 lm/W | 1.05A | 80 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia |
|
|
BXRH-27E3000-D-233000 LM WARM WHITE LED ARRAY Bridgelux |
3,587 | - |
RFQ |
Ficha técnica |
Tube | H9 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3477lm (Typ) | 1A | 25°C | 36.6V | 95 lm/W | 1.4A | 80 | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia |
|
BXRA-17E4000-H-00LED RS 1750K 4000LM 80CRI WW Bridgelux |
3,069 | - |
RFQ |
Ficha técnica |
Tube | LED Array | Obsolete | - | White, Warm | 1750K | - | - | 2800lm (Typ) | 2.1A | 25°C | 23.5V | 57 lm/W | - | 80 | - | - | - | - | - |
|
|
BXRA-17E4000-H-04LED RS 1750K 4000LM 80CRI WW Bridgelux |
3,777 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 1750K | - | - | 2800lm (Typ) | 2.1A | 25°C | 23.5V | 57 lm/W | - | 80 | - | - | - | - | - |
|
|
BXRA-25E4000-H-00LED RS 2500K 3600LM 80CRI WW Bridgelux |
3,678 | - |
RFQ |
Ficha técnica |
Tube | LED Array | Obsolete | - | White, Warm | 2500K | - | - | 3600lm (Typ) | 2.1A | 25°C | 23.5V | 73 lm/W | - | 80 | - | - | - | - | - |
|
|
BXRA-27H0740-A-03LED ES STAR 2700K 740LM 97CRI WW Bridgelux |
3,061 | - |
RFQ |
Ficha técnica |
Tray | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 510lm (Typ) | 350mA | 85°C | 27.3V | 53 lm/W | 500mA | 97 | 120° | - | 20.20mm Dia | 3.00mm | 10.90mm Dia |
|
|
BXRA-27H4000-H-03LED RS 2700K 4000LM 97CRI WW Bridgelux |
2,269 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 2795lm (Typ) | 2.1A | 85°C | 23.5V | 57 lm/W | 3A | 97 | 120° | - | 49.50mm W x 45.30mm H | 2.60mm | 35.00mm Dia |
|
|
BXRA-27H7000-J-03LED RS 2700K 7000LM 97CRI WW Bridgelux |
2,163 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 4390lm (Typ) | 2.8A | 85°C | 29.4V | 53 lm/W | 3.8A | 97 | 120° | - | 49.50mm W x 45.30mm H | 2.60mm | 35.00mm Dia |
|
|
BXRA-30H0740-A-03LED ES STAR 3000K 740LM 97CRI WW Bridgelux |
2,007 | - |
RFQ |
Ficha técnica |
Tray | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 530lm (Typ) | 350mA | 85°C | 27.3V | 55 lm/W | 500mA | 97 | 120° | - | 20.20mm Dia | 3.00mm | 10.90mm Dia |
|
|
BXRA-30H2000-B-03LED ES 3000K 2000LM 97CRI WW Bridgelux |
3,546 | - |
RFQ |
Ficha técnica |
Tray | ES | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1490lm (Typ) | 700mA | 85°C | 36.2V | 59 lm/W | 1A | 97 | 120° | - | 25.80mm L x 22.80mm W | 3.50mm | 19.15mm Dia |
|
|
BXRA-30H4000-H-03LED RS 3000K 4000LM 97CRI WW Bridgelux |
3,711 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3110lm (Typ) | 2.1A | 85°C | 23.5V | 63 lm/W | 3A | 97 | 120° | - | 49.50mm W x 45.30mm H | 2.60mm | 35.00mm Dia |
|
|
BXRA-30H7000-J-03LED RS 3000K 7000LM 97CRI WW Bridgelux |
3,914 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 4760lm (Typ) | 2.8A | 85°C | 29.4V | 58 lm/W | 3.8A | 97 | 120° | - | 49.50mm W x 45.30mm H | 2.60mm | 35.00mm Dia |
|
|
BXRA-35H0740-A-03LED ES STAR 3500K 740LM 97CRI WW Bridgelux |
2,438 | - |
RFQ |
Ficha técnica |
Tray | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 585lm (Typ) | 350mA | 85°C | 27.3V | 61 lm/W | 500mA | 97 | 120° | - | 20.20mm Dia | 3.00mm | 10.90mm Dia |
|
|
BXRA-35H2000-B-03LED ES 3500K 2000LM 97CRI WW Bridgelux |
2,447 | - |
RFQ |
Ficha técnica |
Tray | ES | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 1540lm (Typ) | 700mA | 85°C | 36.2V | 61 lm/W | 1A | 97 | 120° | - | 25.80mm L x 22.80mm W | 3.50mm | 19.15mm Dia |
|
|
BXRA-35H4000-H-03LED RS 3500K 4000LM 97CRI WW Bridgelux |
2,920 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 3345lm (Typ) | 2.1A | 85°C | 23.5V | 68 lm/W | 3A | 97 | 120° | - | 49.50mm W x 45.30mm H | 2.60mm | 35.00mm Dia |
|
|
BXRA-35H7000-J-03LED RS 3500K 7000LM 97CRI WW Bridgelux |
3,260 | - |
RFQ |
Ficha técnica |
Tube | RS | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 4920lm (Typ) | 2.8A | 85°C | 29.4V | 60 lm/W | 3.8A | 97 | 120° | - | 49.50mm W x 45.30mm H | 2.60mm | 35.00mm Dia |
