Iluminação de LED - COBs, motores, módulos, tiras
| Foto: | Número da peça do fabricante | Disponibilidade | Preço | Quantidade | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-40E4000-B-73LED COB VERO 18 4000K ROUND Bridgelux |
3,302 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 4528lm (Typ) | 900mA | 85°C | 34.1V | 148 lm/W | 1.8A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-40G4000-B-73LED COB VERO 18 4000K ROUND Bridgelux |
3,851 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3875lm (Typ) | 900mA | 85°C | 34.1V | 126 lm/W | 1.8A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|

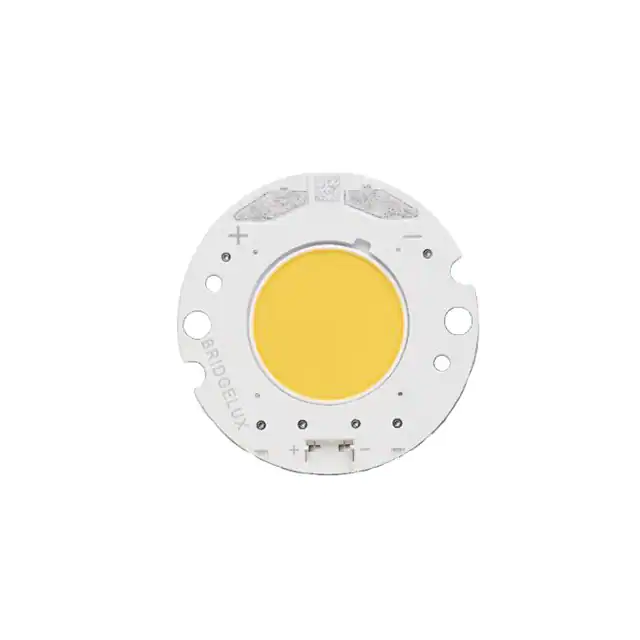

BXRC-20B4001-D-73LED COB GEN7 VERO18 2000K ROUND Bridgelux |
2,663 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 3981lm (Typ) | 1.05A | 85°C | 28.1V | 121 lm/W | 2.1A | 65 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRE-30E6500-D-73LED COB GEN7 V22 3000K SQUARE Bridgelux |
2,187 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6846lm (Typ) | 1.4A | 85°C | 33.4V | 146 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
BXRV-TR-2765G-65A0-A-23VESTA TW22 GEN 2 Bridgelux |
2,393 | - |
RFQ |
Ficha técnica |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm / White, Cool | 4600K (2700K ~ 6500K) 3-Step MacAdam Ellipse | - | Square | 6106lm (Typ) | 900mA | 25°C | 53V | 128 lm/W | 1.4A | 92 | 130° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.10mm Dia |
|
|
BXRC-27E4000-C-73LED COB VERO 18 2700K ROUND Bridgelux |
2,526 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 5434lm (Typ) | 1.17A | 85°C | 34.1V | 136 lm/W | 2.34A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
BXRE-27G4000-B-83V18B WARM WHITE LED ARRAY Bridgelux |
3,462 | - |
RFQ |
Ficha técnica |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 139 lm/W | - | 90 | - | - | - | - | 18.00mm Dia |
|
BXRC-30E4000-D-83VERO 18D WARM WHITE LED ARRAY Bridgelux |
3,066 | - |
RFQ |
Ficha técnica |
Tube | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4308lm (Typ) | 850mA | 25°C | 28.2V | 180 lm/W | 2.5A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.50mm Dia |
|
|
BXRE-40E6500-C-73LED COB V22 4000K SQUARE Bridgelux |
3,563 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 10885lm (Typ) | 1.44A | 85°C | 50.7V | 149 lm/W | 2.88A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
BXRC-30E10K0-B-73LED COB VERO 29 3000K ROUND Bridgelux |
3,323 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 14943lm (Typ) | 1.8A | 25°C | 52V | 160 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-20B10K1-D-73LED COB VERO 29 2000K ROUND Bridgelux |
2,307 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 11793lm (Typ) | 2.1A | 25°C | 37.6V | 149 lm/W | 4.2A | 65 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
BXRC-40E10K0-C-73-SELED COB VERO SE 4000K ROUND Bridgelux |
3,120 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 19581lm (Typ) | 1.71A | 25°C | 69.4V | 165 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
|
BXRC-27G10K0-D-83VERO 29D WARM WHITE LED ARRAY Bridgelux |
100 | - |
RFQ |
Ficha técnica |
Bulk | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 8886lm (Typ) | 1.7A | 25°C | 36.4V | 144 lm/W | 5.5A | 90 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.10mm Dia |
.JPG)
|

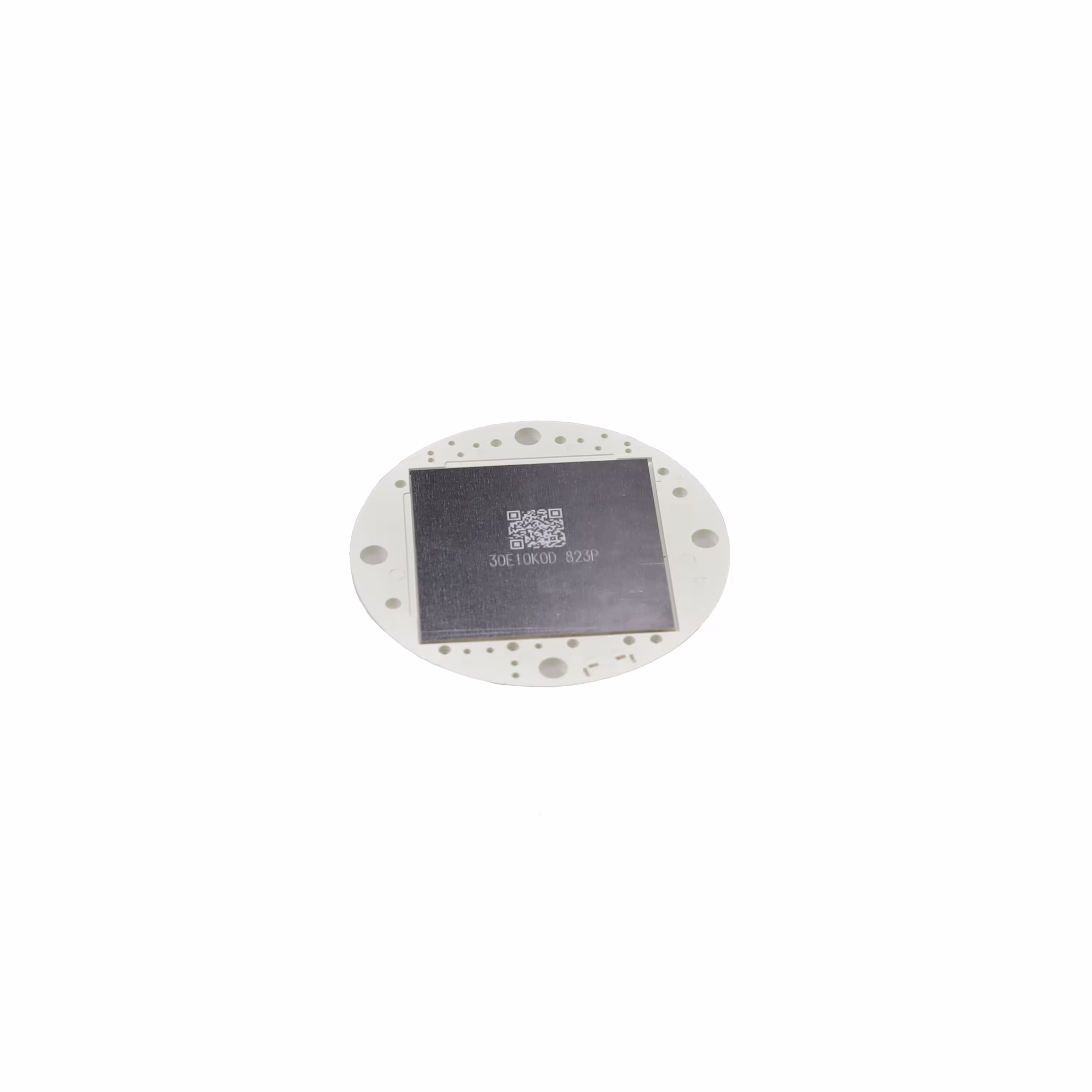

BXRC-30E10K0-D-83VERO 29D WARM WHITE LED ARRAY Bridgelux |
2,211 | - |
RFQ |
Ficha técnica |
Bulk | Gen 8 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 11444lm (Typ) | 1.7A | 25°C | 36.4V | 185 lm/W | 5.5A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.10mm Dia |
|
|
BXRC-30G10K0-C-73LED COB VERO 29 3000K ROUND Bridgelux |
3,266 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 15768lm (Typ) | 1.71A | 25°C | 69.4V | 133 lm/W | 3.42A | 90 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|

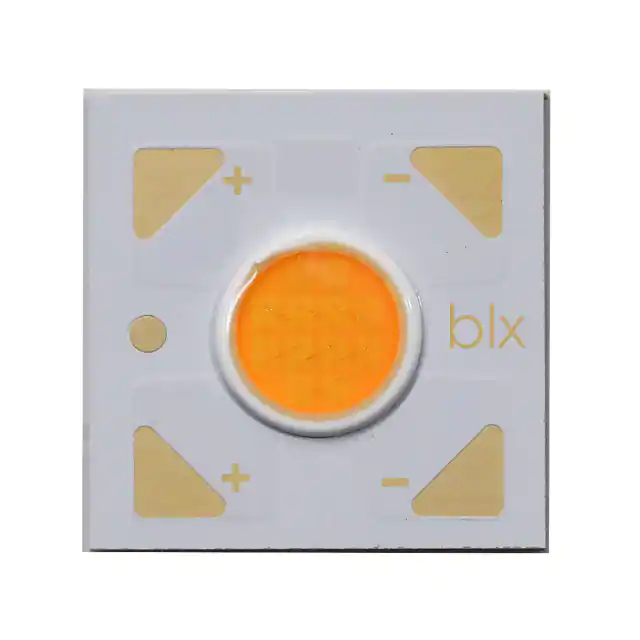

BXRH-40E0600-A-73V4 HD NEUTRAL WHITE LED ARRAY Bridgelux |
766 | - |
RFQ |
Ficha técnica |
Tray | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 700lm (Typ) | 175mA | 85°C | 35.4V | 113 lm/W | 240mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-30H0600-A-73V4 HD WARM WHITE LED ARRAY Bridgelux |
442 | - |
RFQ |
Ficha técnica |
Tube | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 498lm (Typ) | 175mA | 85°C | 35.4V | 80 lm/W | 240mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
BXRC-27E1000-D-73-SELED COB VERO SE 2700K ROUND Bridgelux |
2,723 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1179lm (Typ) | 350mA | 85°C | 25.3V | 133 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-40E1000-B-73-SELED COB VERO SE 4000K ROUND Bridgelux |
2,704 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1319lm (Typ) | 270mA | 85°C | 33.8V | 144 lm/W | 540mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
|
|
BXRC-40G1000-C-73-SELED COB VERO SE 4000K ROUND Bridgelux |
100 | - |
RFQ |
Ficha técnica |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1511lm (Typ) | 360mA | 85°C | 33.8V | 124 lm/W | 720mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia |
