Iluminação de LED - COBs, motores, módulos, tiras
| Foto: | Número da peça do fabricante | Disponibilidade | Preço | Quantidade | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBT-140-WCS-C15-UA123BIG CHIP LED COOL WHITE Luminus Devices Inc. |
3,528 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Cool | 7040K ~ 8500K | - | Square | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 50 lm/W | 21A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
|
CBT-140-WTH-C15-QB720BIG CHIP LED TUNGSTEN WHITE Luminus Devices Inc. |
3,130 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Warm | 2725K ~ 3190K | - | Square | 2340lm (2260lm ~ 2420lm) | 21A | 85°C | 3.6V | 31 lm/W | 21A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
|
CBT-140-WTH-C15-QB721BIG CHIP LED TUNGSTEN WHITE Luminus Devices Inc. |
3,064 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Warm | 2725K ~ 3190K | - | Square | 2340lm (2260lm ~ 2420lm) | 21A | 85°C | 3.6V | 31 lm/W | 21A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|

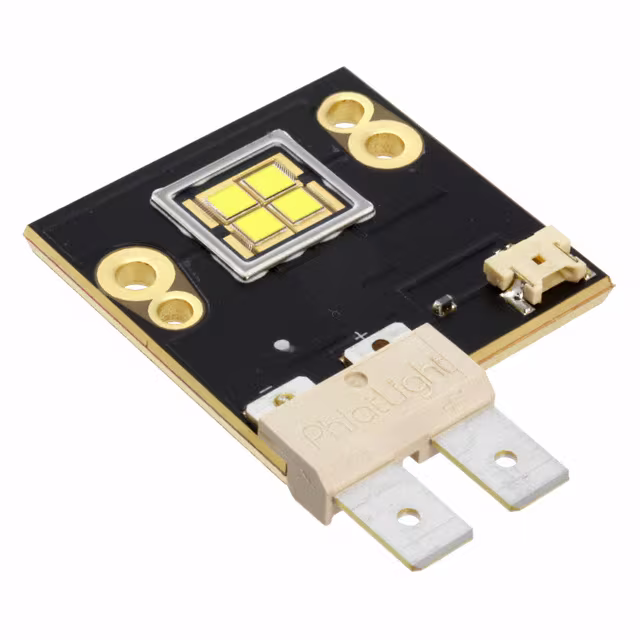

CBM-360-W65S-D32-WA102BIG CHIP LED WHITE 6500K Luminus Devices Inc. |
3,933 | - |
RFQ |
Ficha técnica |
Tray | CBM-360 | Obsolete | LED Module | White, Cool | 6500K | - | Square | - | 6.3A | - | - | - | 6.3A | - | - | With Connector | - | - | - |
|

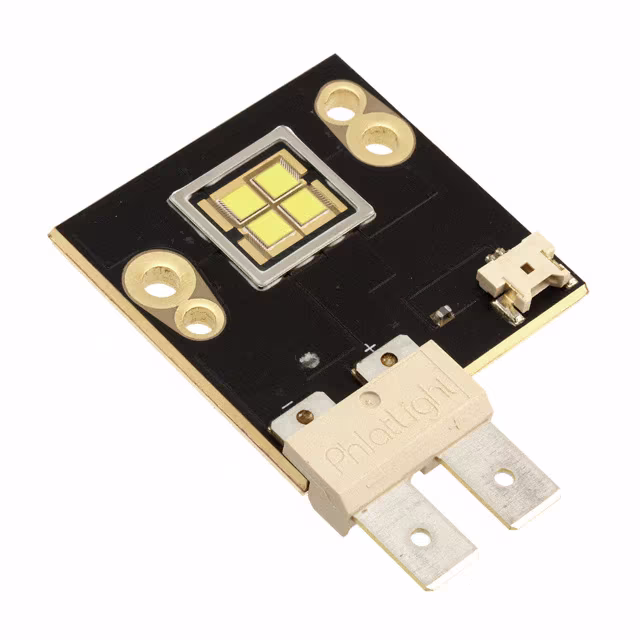

CBM-360-W65S-D32-VB102BIG CHIP LED HB MODULE WHITE Luminus Devices Inc. |
2,800 | - |
RFQ |
Ficha técnica |
Tray | CBM-360 | Obsolete | LED Module | White, Cool | 6500K | - | Square | - | 6.3A | - | - | - | 6.3A | - | - | With Connector | - | - | - |
|
CBT-140-WCS-C15-UA121BIG CHIP LED COOL WHITE Luminus Devices Inc. |
3,119 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Cool | 7040K | - | Square | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 51 lm/W | - | 75 | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
|
CBT-140-WCS-C15-UB120BIG CHIP LED COOL WHITE Luminus Devices Inc. |
2,158 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Cool | 6020K ~ 8500K | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 21A | 85°C | 3.6V | 54 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
|
CBT-140-WCS-C15-UB121BIG CHIP LED COOL WHITE Luminus Devices Inc. |
3,435 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Cool | 6020K ~ 8500K | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 21A | 85°C | 3.6V | 54 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
|
CBT-140-WCS-C15-UB122BIG CHIP LED COOL WHITE Luminus Devices Inc. |
2,701 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Cool | 6530K | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 21A | 85°C | 3.6V | 54 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
|
CBT-140-WCS-C15-UB123BIG CHIP LED COOL WHITE Luminus Devices Inc. |
3,200 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Cool | 7770K | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 21A | 85°C | 3.6V | 54 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
|
CBT-140-WDH-C15-QA220BIG CHIP LED DAY WHITE Luminus Devices Inc. |
2,763 | - |
RFQ |
Ficha técnica |
Tray | CBT-140 | Obsolete | LED Module | White, Cool | 5600K | - | Square | 2180lm (2100lm ~ 2260lm) | 21A | 85°C | 3.6V | 29 lm/W | - | 92 | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia |
|
CBT-90-R-C11-HK102BIG CHIP LED HB MODULE RED Luminus Devices Inc. |
2,921 | - |
RFQ |
Ficha técnica |
Tray | CBT-90 | Obsolete | LED Module | Red | - | 613nm | Rectangle | - | 13.5A | - | 2.5V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
|
CBT-90-R-C11-HM100BIG CHIP LED HB MODULE RED Luminus Devices Inc. |
3,902 | - |
RFQ |
Ficha técnica |
Tray | CBT-90 | Obsolete | LED Module | Red | - | 613nm | Rectangle | - | 13.5A | - | 2.5V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
CXM-14-27-80-36-AA00-F1-3LED COB WHT 13.5MM 2700K 80CRI Luminus Devices Inc. |
2,912 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1780lm (1735lm ~ 1825lm) | 480mA | 85°C | 35V | 109 lm/W | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia |
|
|
CXM-14-27-90-36-AA00-F1-3LED COB WHT 13.5MM 2700K 90CRI Luminus Devices Inc. |
2,852 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1388lm (1350lm ~ 1425lm) | 480mA | 85°C | 35V | 83 lm/W | 1A | 90 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia |
|
|
CXM-14-27-95-36-AA00-F1-3LED COB WHT 13.5MM 2700K 95CRI Luminus Devices Inc. |
3,523 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1305lm (1270lm ~ 1340lm) | 480mA | 85°C | 35V | 78 lm/W | 1A | 95 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia |
|
|
CXM-14-30-80-36-AA00-F1-3LED COB WHT 13.5MM 3000K 80CRI Luminus Devices Inc. |
3,058 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1883lm (1835lm ~ 1930lm) | 480mA | 85°C | 35V | 112 lm/W | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia |
|
|
CXM-14-30-90-36-AA00-F1-3LED COB WHT 13.5MM 3000K 90CRI Luminus Devices Inc. |
2,723 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1593lm (1550lm ~ 1635lm) | 480mA | 85°C | 35V | 95 lm/W | 1A | 90 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia |
|
|
CXM-14-30-95-36-AA00-F1-3LED COB WHT 13.5MM 3000K 95CRI Luminus Devices Inc. |
2,439 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1483lm (1445lm ~ 1520lm) | 480mA | 85°C | 35V | 88 lm/W | 1A | 95 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia |
|
|
CXM-14-35-80-36-AA00-F1-3LED COB WHT 13.5MM 3500K 80CRI Luminus Devices Inc. |
2,029 | - |
RFQ |
Ficha técnica |
Tray | CXM-14 | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1938lm (1890lm ~ 1985lm) | 480mA | 85°C | 35V | 115 lm/W | 1A | 80 | 120° | - | 18.50mm L x 18.50mm W | 1.37mm | 13.50mm Dia |
