Iluminação de LED - COBs, motores, módulos, tiras
| Foto: | Número da peça do fabricante | Disponibilidade | Preço | Quantidade | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB1512-0000-000F0UN240GLED COB CXB1512 NEUT WHT SQUARE CreeLED, Inc. |
2,839 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 700mA | 85°C | 17.2V | 138 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0BP440ELED COB CXB1512 NEUT WHT SQUARE CreeLED, Inc. |
2,554 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 350mA | 85°C | 34.3V | 169 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0BP450ELED COB CXB1512 COOL WHT SQUARE CreeLED, Inc. |
2,254 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 350mA | 85°C | 34.3V | 169 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0BP457ELED COB CXB1512 COOL WHT SQUARE CreeLED, Inc. |
3,607 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 350mA | 85°C | 34.3V | 169 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0BP465ELED COB CXB1512 COOL WHT SQUARE CreeLED, Inc. |
3,275 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 350mA | 85°C | 34.3V | 169 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0HN430GLED COB CXB1512 WARM WHT SQUARE CreeLED, Inc. |
3,552 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 350mA | 85°C | 34.3V | 148 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0HP235GLED COB CXB1512 WARM WHT SQUARE CreeLED, Inc. |
3,934 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 350mA | 85°C | 34.3V | 158 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0HP240GLED COB CXB1512 NEUT WHT SQUARE CreeLED, Inc. |
3,017 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 350mA | 85°C | 34.3V | 158 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0UM227GLED COB CXB1512 WARM WHT SQUARE CreeLED, Inc. |
3,281 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 34.3V | 119 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0UM430GLED COB CXB1512 WARM WHT SQUARE CreeLED, Inc. |
3,356 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 34.3V | 128 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0UM435GLED COB CXB1512 WARM WHT SQUARE CreeLED, Inc. |
2,937 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 34.3V | 128 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000N0UN240GLED COB CXB1512 NEUT WHT SQUARE CreeLED, Inc. |
2,617 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 350mA | 85°C | 34.3V | 138 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|

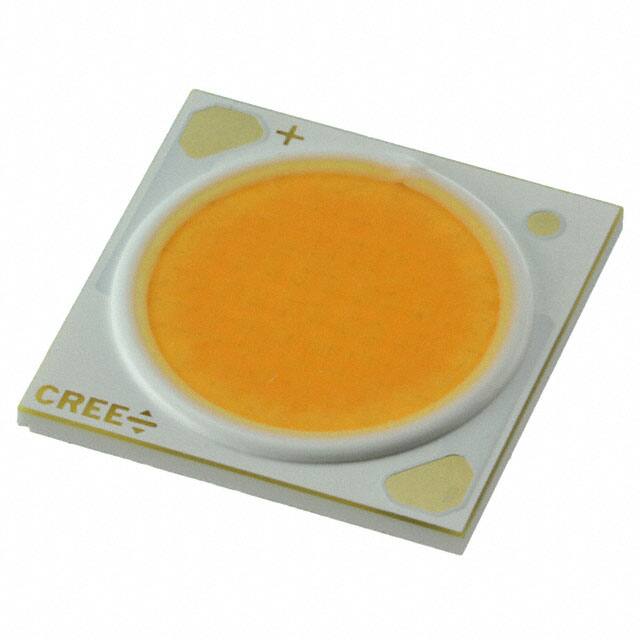

CXA2520-0000-000N0UN427HLED COB CXA2520 WARM WHT SQUARE CreeLED, Inc. |
2,769 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 550mA | 85°C | 36V | 89 lm/W | 1.25A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA2520-0000-000N00R450HLED ARRAY XLAMP CXA2520 19MM WHT CreeLED, Inc. |
3,290 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.25A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N0HR20E5LED ARRAY XLAMP CXA2520 19MM WHT CreeLED, Inc. |
2,142 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N0HR250HLED ARRAY XLAMP CXA2520 19MM WHT CreeLED, Inc. |
2,840 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB1820-0000-000N0UP427GLED ARR 12MM 2700K 90CRI 1965LM CreeLED, Inc. |
3,776 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1820 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 550mA | 85°C | 36V | 103 lm/W | 1.05A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXB1512-0000-000F0HN227HLED COB CXB1512 2700K WHT SMD CreeLED, Inc. |
2,360 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 700mA | 85°C | 18V | 131 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000F0HN230HLED COB CXB1512 3000K WHT SMD CreeLED, Inc. |
2,471 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 700mA | 85°C | 18V | 131 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXB1512-0000-000F0HN435HLED COB CXB1512 3500K WHT SMD CreeLED, Inc. |
3,277 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1512 | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1770lm (1710lm ~ 1830lm) | 700mA | 85°C | 18V | 140 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
