Iluminação de LED - COBs, motores, módulos, tiras
| Foto: | Número da peça do fabricante | Disponibilidade | Preço | Quantidade | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMA1303-0000-000N0U0A40GLED COB CMA1304 4000K WHT SMD CreeLED, Inc. |
3,986 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 709lm (Typ) | 175mA | 85°C | 37.4V | 108 lm/W | 350mA | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
|
|
CMA1303-0000-000N0U0A30GLED COB CMA1304 3000K WHT SMD CreeLED, Inc. |
3,148 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 659lm (Typ) | 175mA | 85°C | 37.4V | 101 lm/W | 350mA | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
|
|
CMA1303-0000-000N0H0A40GLED COB CMA1304 4000K WHT SMD CreeLED, Inc. |
2,847 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 823lm (Typ) | 175mA | 85°C | 37.4V | 126 lm/W | 350mA | 80 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
|
|
CMA1303-0000-000C0H0A27GLED COB CMA1304 2700K WHT SMD CreeLED, Inc. |
2,876 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 748lm (Typ) | 700mA | 85°C | 9.35V | 114 lm/W | 1.4A | 80 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia |
|
CXA1507-0000-000N0YE230HLED ARRAY XLAMP CXA1507 WHITE CreeLED, Inc. |
2,377 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 200mA | 85°C | 37V | 83 lm/W | 375mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|

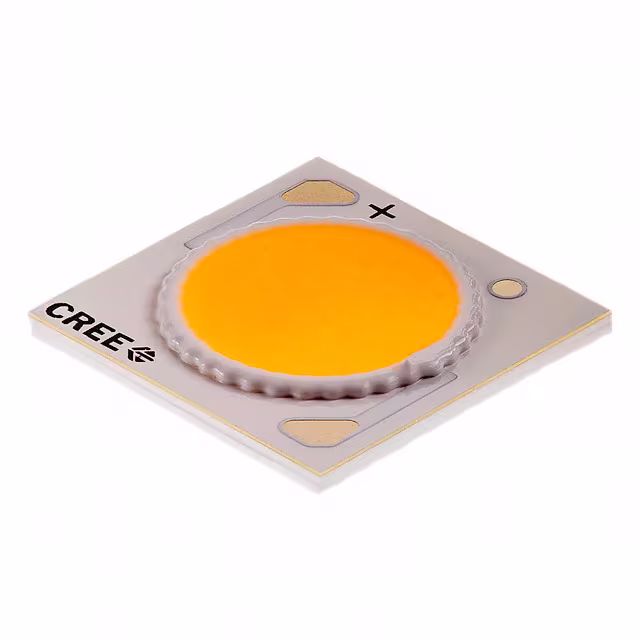

CXA1816-0000-000N00Q20E3LED COB CXA1816 COOL WHT SQUARE CreeLED, Inc. |
3,507 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 2180lm (2100lm ~ 2260lm) | 450mA | 85°C | 37V | 131 lm/W | 900mA | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA1512-0000-000N00M230GLED COB CXA1512 3000K WHITE SMD CreeLED, Inc. |
2,518 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1433lm (1380lm ~ 1485lm) | 350mA | 85°C | 36V | 114 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1816-0000-000N00P457FLED ARRAY XLAMP CXA1816 WHITE CreeLED, Inc. |
2,588 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 450mA | 85°C | 37V | 122 lm/W | 900mA | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CXA1816-0000-000N00P230GLED COB CXA1816 3000K WHITE SMD CreeLED, Inc. |
3,389 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 450mA | 85°C | 36V | 117 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
CXA1816-0000-000N00P235GLED COB CXA1816 3500K WHITE SMD CreeLED, Inc. |
3,618 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 450mA | 85°C | 36V | 117 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CXA1512-0000-000F00K20E7LED COB CXA1512 WARM WHT SQUARE CreeLED, Inc. |
2,813 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|

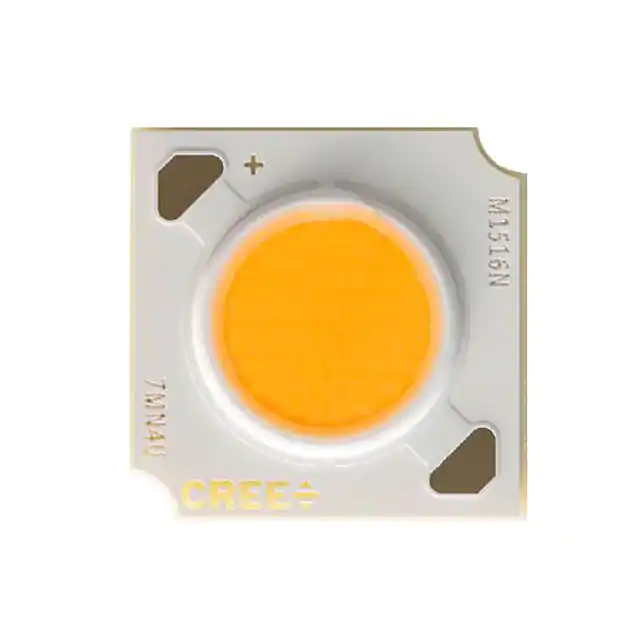

CMA1516-0000-000N0U0A30GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
2,576 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1516 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1818lm (Typ) | 450mA | 85°C | 35V | 115 lm/W | 1.05A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.00mm Dia |
|

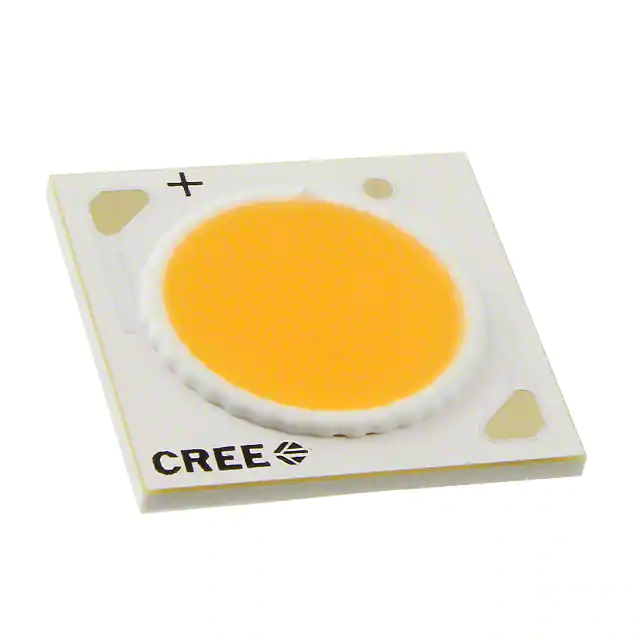

CXA1820-0000-000N0HQ450FLED ARRAY XLAMP CXA1820 WHITE CreeLED, Inc. |
3,192 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1820 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2780lm) | 550mA | 85°C | 37V | 115 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|

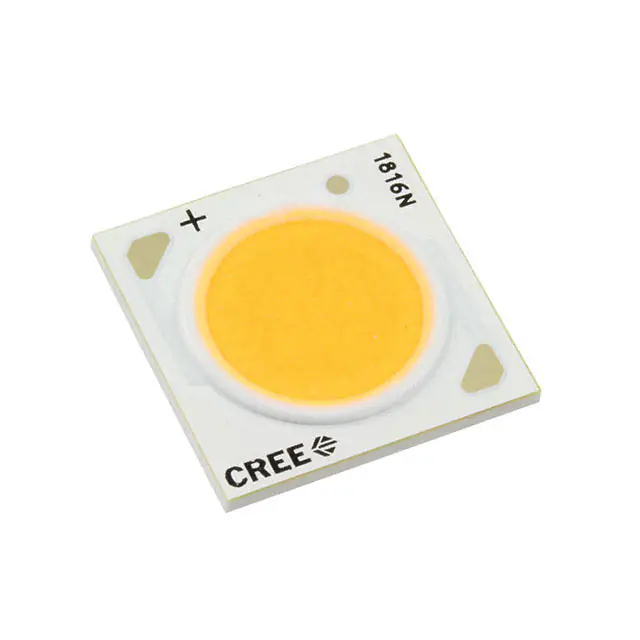

CXB1816-0000-000N0HP430GLED ARR 12MM 3000K 80CRI 1965LM CreeLED, Inc. |
2,306 | - |
RFQ |
Ficha técnica |
Tray | Xlamp® CXB1816 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2033lm (1965lm ~ 2100lm) | 450mA | 85°C | 36V | 125 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
|
|
CMA1516-0000-000N0H0A30GXLAMP CMA LIGHT EMITTING DIODE W CreeLED, Inc. |
2,762 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMA1516 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2150lm (Typ) | 450mA | 85°C | 35V | 137 lm/W | 1.05A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.00mm Dia |
|
CXA2520-0000-000N0HR240FLED ARRAY XLAMP CXA2520 19MM WHT CreeLED, Inc. |
2,666 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXA1830-0000-000N00T230GLED COB CXA1830 3000K WHITE SMD CreeLED, Inc. |
3,016 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA1830 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 36V | 115 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia |
|
|
CXA2520-0000-000N0HQ440FLED XLAMP CXA2520 19MM WHT CreeLED, Inc. |
2,426 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
|
CXA2520-0000-000N0HR240GLED COB CXA2520 4000K WHITE SMD CreeLED, Inc. |
3,964 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CMT1412-0000-00PN0U0A40GLED LIGHTING CHIP-ON-BOARD (COB) CreeLED, Inc. |
2,243 | - |
RFQ |
Ficha técnica |
Tray | XLamp® CMT1412 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1641lm (Typ) | 350mA | 85°C | 34.5V | 136 lm/W | 630mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.45mm | 9.80mm Dia |
