Iluminação de LED - COBs, motores, módulos, tiras
| Foto: | Número da peça do fabricante | Disponibilidade | Preço | Quantidade | Ficha técnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CVM-27-56-95-36-AA00-F2-2LED COB WHT 5600K 95CRI Luminus Devices Inc. |
3,230 | - |
RFQ |
Ficha técnica |
Tray | Studio | Active | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | - | 4.2A | - | 36V | - | 4.2A | 95 | 120° | - | 31.50mm L x 31.50mm W | 1.37mm | 26.50mm Dia |
|

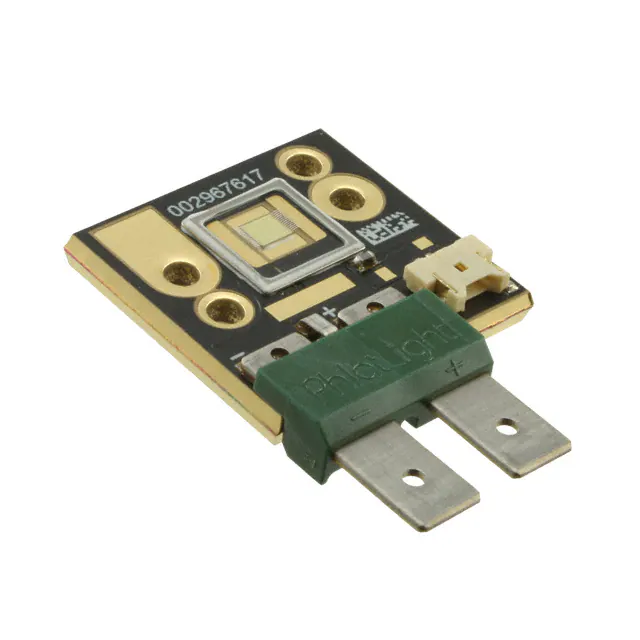

CBT-90-G-L11-CM100EMITTER GREEN MODULE Luminus Devices Inc. |
3,015 | - |
RFQ |
Ficha técnica |
Tray | CBT-90 | Discontinued at Mosen | LED Module | Green | - | 525nm (510nm ~ 540nm) | Rectangle | 2150lm (2000lm ~ 2300lm) | 13.5A | 40°C | 4.5V | 35 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
|
CBT-90-G-L11-CM101EMITTER GREEN MODULE Luminus Devices Inc. |
3,441 | - |
RFQ |
Ficha técnica |
Tray | CBT-90 | Discontinued at Mosen | LED Module | Green | - | 528nm (520nm ~ 535nm) | Rectangle | 2150lm (2000lm ~ 2300lm) | 13.5A | 40°C | 4.5V | 35 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W |
|
CHM-9-27-90-36-XH00-F2-3LED COB CHM9 WARM WHITE SQUARE Luminus Devices Inc. |
3,430 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1945lm (Typ) | 720mA | 85°C | 36V | 75 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 2.24mm | 9.00mm Dia | |
|
|
CHM-9-30-90-36-XH00-F2-3LED COB CHM9 WARM WHITE SQUARE Luminus Devices Inc. |
2,931 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2050lm (Typ) | 720mA | 85°C | 36V | 79 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 2.24mm | 9.00mm Dia | |
|
|
CHM-9-40-90-36-XH00-F2-3LED COB CHM9 NEUTRAL WHITE SQ Luminus Devices Inc. |
2,365 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2195lm (Typ) | 720mA | 85°C | 36V | 85 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 2.24mm | 9.00mm Dia | |
|
|
CHM-9-50-90-36-XH00-F2-3LED COB CHM9 COOL WHITE SQUARE Luminus Devices Inc. |
3,032 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2270lm (Typ) | 720mA | 85°C | 36V | 88 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 2.24mm | 9.00mm Dia | |
|
|
CHM-9-27-80-36-XH00-F1-3LED COB 2700K 80CRI 36V SMD Luminus Devices Inc. |
2,067 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-27-80-36-XH00-F2-2LED COB 2700K 80CRI 36V SMD Luminus Devices Inc. |
3,236 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2430lm (Typ) | 720mA | 85°C | 36V | 94 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-27-80-36-XH00-F2-3LED COB 2700K 80CRI 36V SMD Luminus Devices Inc. |
3,981 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2430lm (Typ) | 720mA | 85°C | 36V | 94 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-27-90-36-XH00-F1-3LED COB 2700K 90CRI 36V SMD Luminus Devices Inc. |
2,198 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-27-90-36-XH00-F2-2LED COB 2700K 90CRI 36V SMD Luminus Devices Inc. |
3,048 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1845lm (Typ) | 720mA | 85°C | 36V | 71 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-27-95-36-XH00-F1-3LED COB 2700K 95CRI 36V SMD Luminus Devices Inc. |
2,644 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-27-95-36-XH00-F2-2LED COB 2700K 95CRI 36V SMD Luminus Devices Inc. |
2,078 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1730lm (Typ) | 720mA | 85°C | 36V | 67 lm/W | 1.05A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-27-95-36-XH00-F2-3LED COB 2700K 95CRI 36V SMD Luminus Devices Inc. |
2,456 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1730lm (Typ) | 720mA | 85°C | 36V | 67 lm/W | 1.05A | 95 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-30-80-36-XH00-F1-3LED COB 3000K 80CRI 36V SMD Luminus Devices Inc. |
2,047 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-30-80-36-XH00-F2-2LED COB 3000K 80CRI 36V SMD Luminus Devices Inc. |
2,867 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2435lm (Typ) | 720mA | 85°C | 36V | 94 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-30-80-36-XH00-F2-3LED COB 3000K 80CRI 36V SMD Luminus Devices Inc. |
2,192 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2435lm (Typ) | 720mA | 85°C | 36V | 94 lm/W | 1.05A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-30-90-36-XH00-F1-3LED COB 3000K 90CRI 36V SMD Luminus Devices Inc. |
2,361 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 36V | - | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia | |
|
|
CHM-9-30-90-36-XH00-F2-2LED COB 3000K 90CRI 36V SMD Luminus Devices Inc. |
3,228 | - |
RFQ |
Tray | CHM-9 | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1950lm (Typ) | 720mA | 85°C | 36V | 75 lm/W | 1.05A | 90 | 120° | - | 19.00mm L x 19.00mm W | 1.37mm | 9.00mm Dia |
